 Reporting on capacity per OS

Ian Jeffery's profile image
Ian Jeffery posted 05-31-2024 10:51

How can I generate a report that will give me assigned and used capacities per OS across multiple arrays, with Ops Center or maybe Analizer.
HiCommand had this function and was straight forward.

William Jansen Van Nieuwenhuizen's profile image
William Jansen Van Nieuwenhuizen posted 06-02-2024 12:44

Hello

I believe the infrastructure report is what you're looking for in Analyzer Detailed view:

You can either schedule it or download it.

Regards

William

Ian Jeffery's profile image
Ian Jeffery posted 06-03-2024 09:44

Hi William, hope you are well and thank you for the response.
I use this report you suggested for various other reporting, but in the report, I cannot see "host mode" with capacity.

Tried building my own report with Analizer detail view, but not winning.
I do get host groups with host mode, but no capacity with.

William Jansen Van Nieuwenhuizen's profile image
William Jansen Van Nieuwenhuizen posted 06-04-2024 02:19

Hello

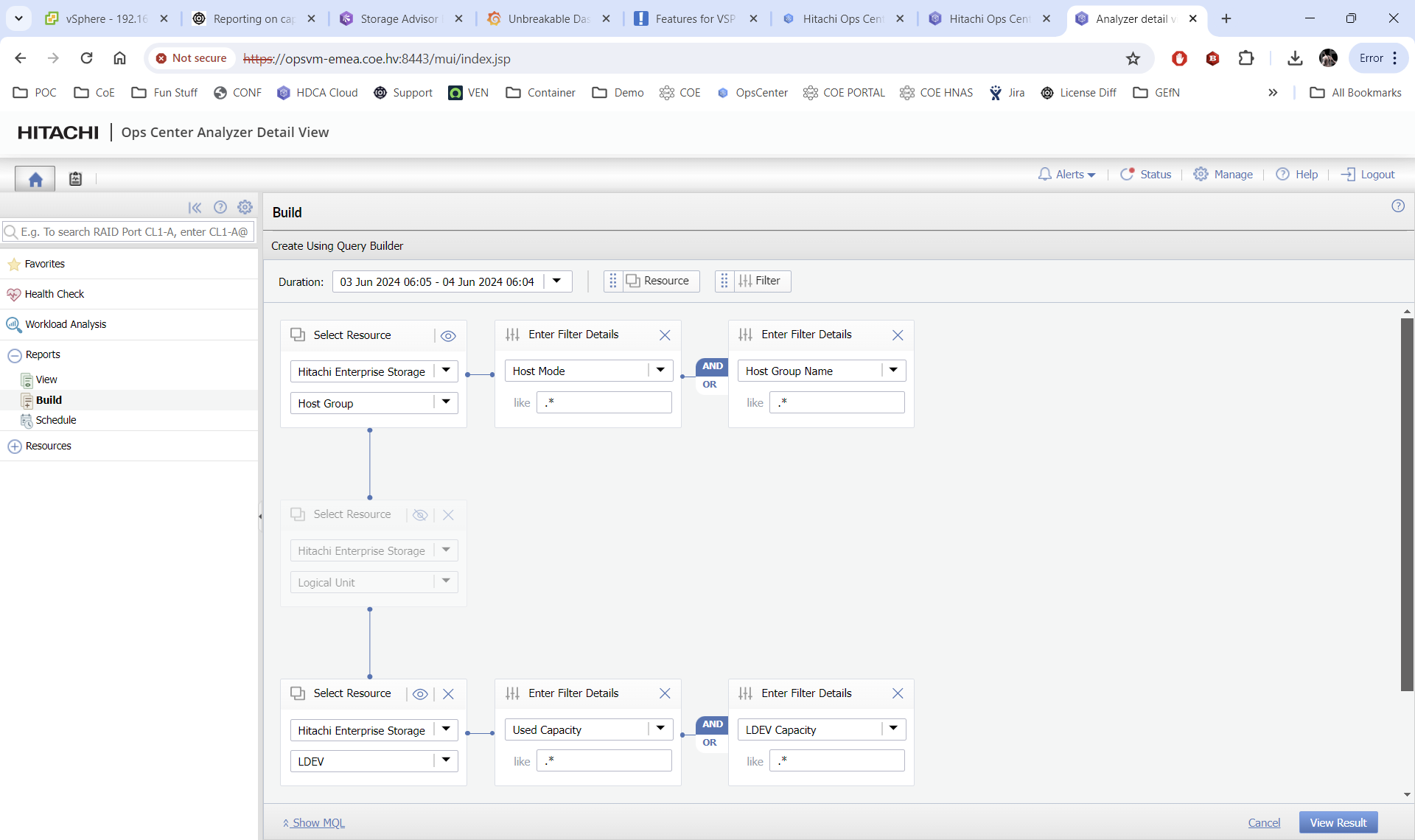

I believe this is the query you're looking for:

MQL:

raidHG[=hostMode rx .*]&[=hgName rx .*]/*raidLU/raidLdev[=usedCapacityGB rx .*]&[=ldevCapacityGB rx .*]

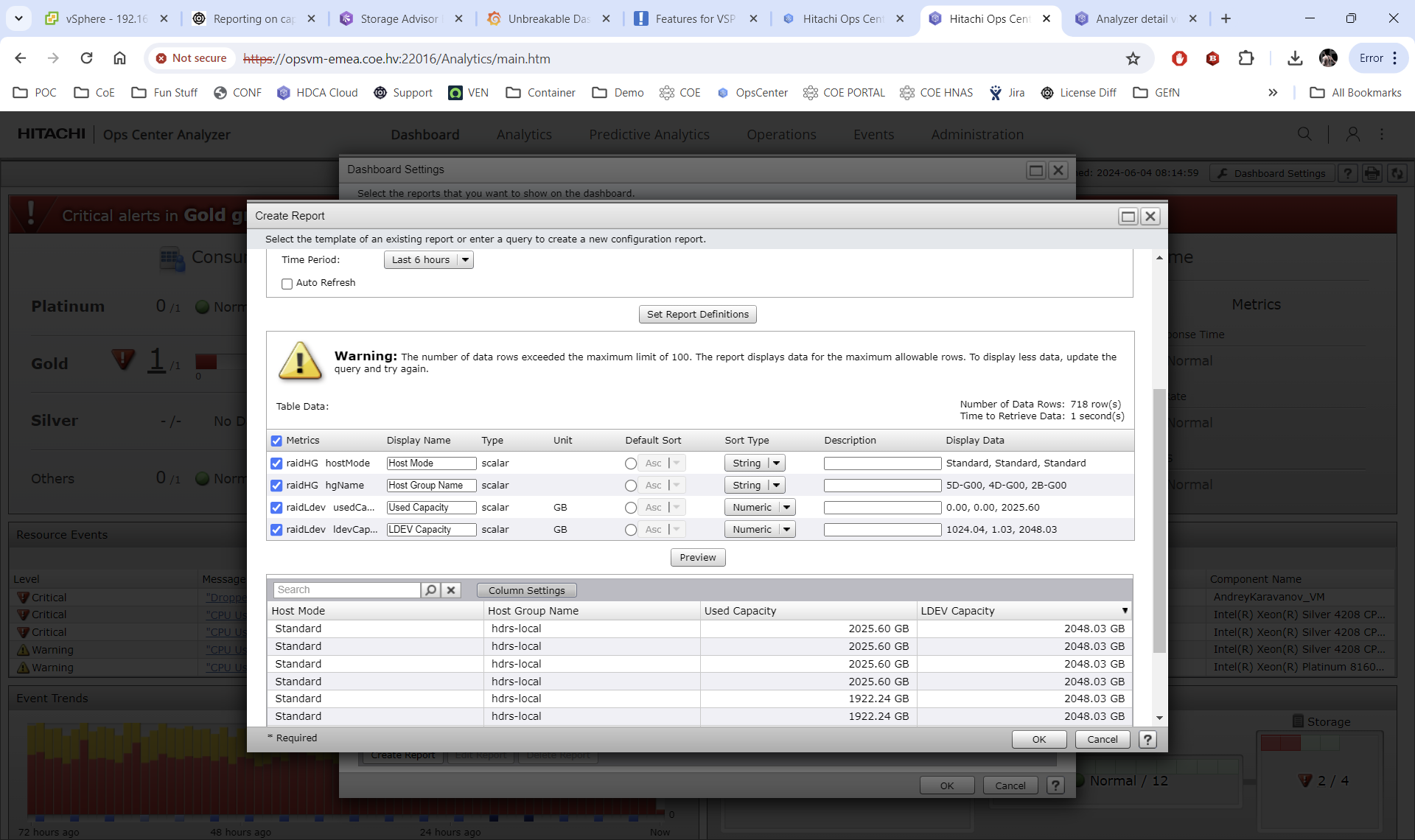

Example report:

Ian Jeffery's profile image
Ian Jeffery posted 06-07-2024 09:27

Hi William.
This report is almost what is needed. You can drill down into resource and get capacity per LDEV. Would like to get total capacity on HG level.

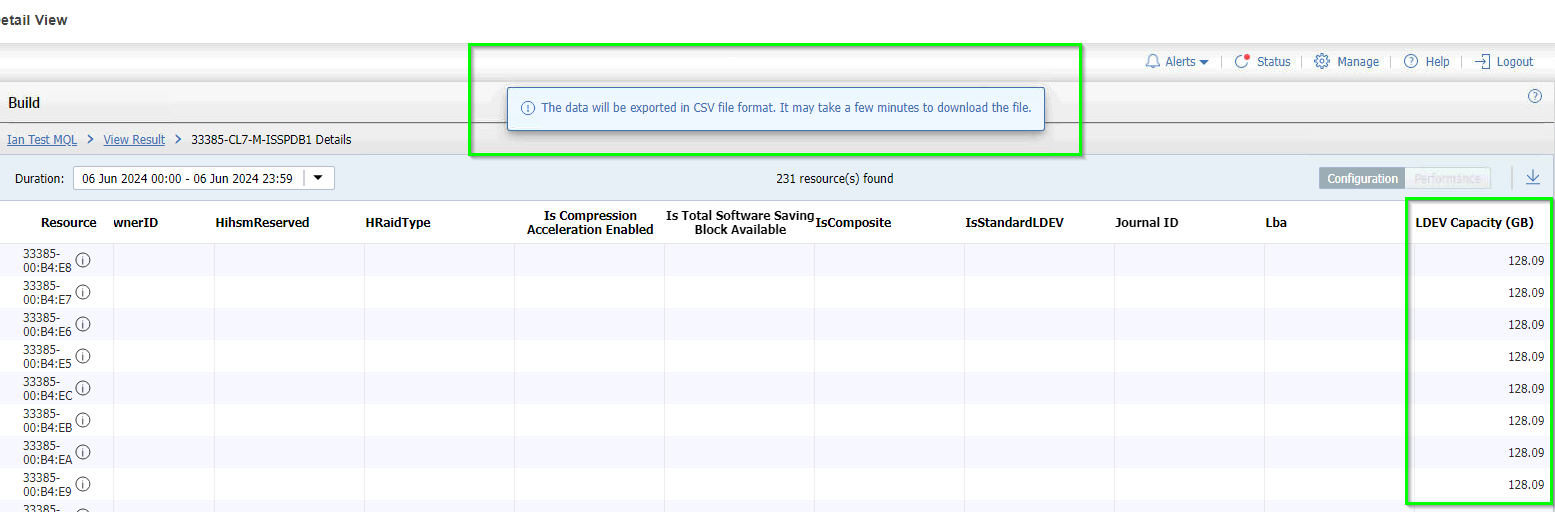

The second problem with the report is when I download the report, the download default to csv format which is fine, but splits the report into two csv files and that does not help. Now you can't match resource with capacities anymore.  See screenshots below.

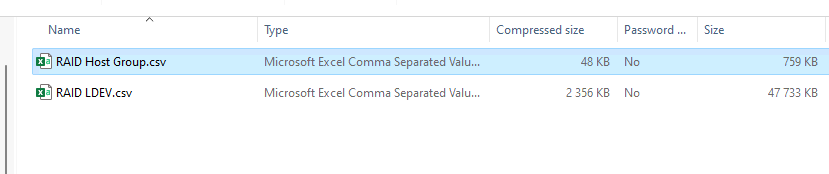

Two separate files:

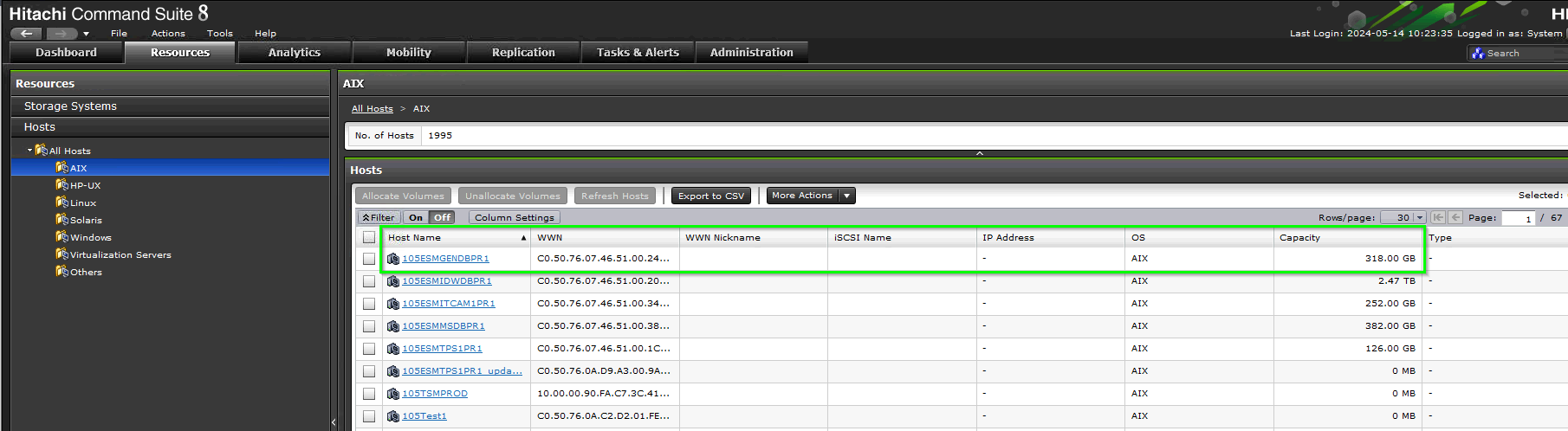

This is how HiCommand shows it - Total capacity per host group not on LDEV level. With OS type.
